Hermes M-Coating System

SCH-MCOAT-PMS

Price on Application

• All-In-One manhole renovation system.

• For surface preparation, spray-coating and manhole rehabilitation.

• Versatile application: hand coating, wet-spray method, or centrifugal process.

• Certified performance: tested according to DIN19573 and DIBT approved.

• Fast protection: water-resistant after only 2 hours (at 20°C).

All-In-One Manhole Renovation System

Hermes technology

A Semi-Automatic Manhole Coating System

Designed for mobile applications and efficient rehabilitation of wastewater structures.

Over 20 Years of Industry Experience

Developed with industry experience, this compact system enables the professional refurbishment of both round and square sewer shafts using the centrifugal coating method.

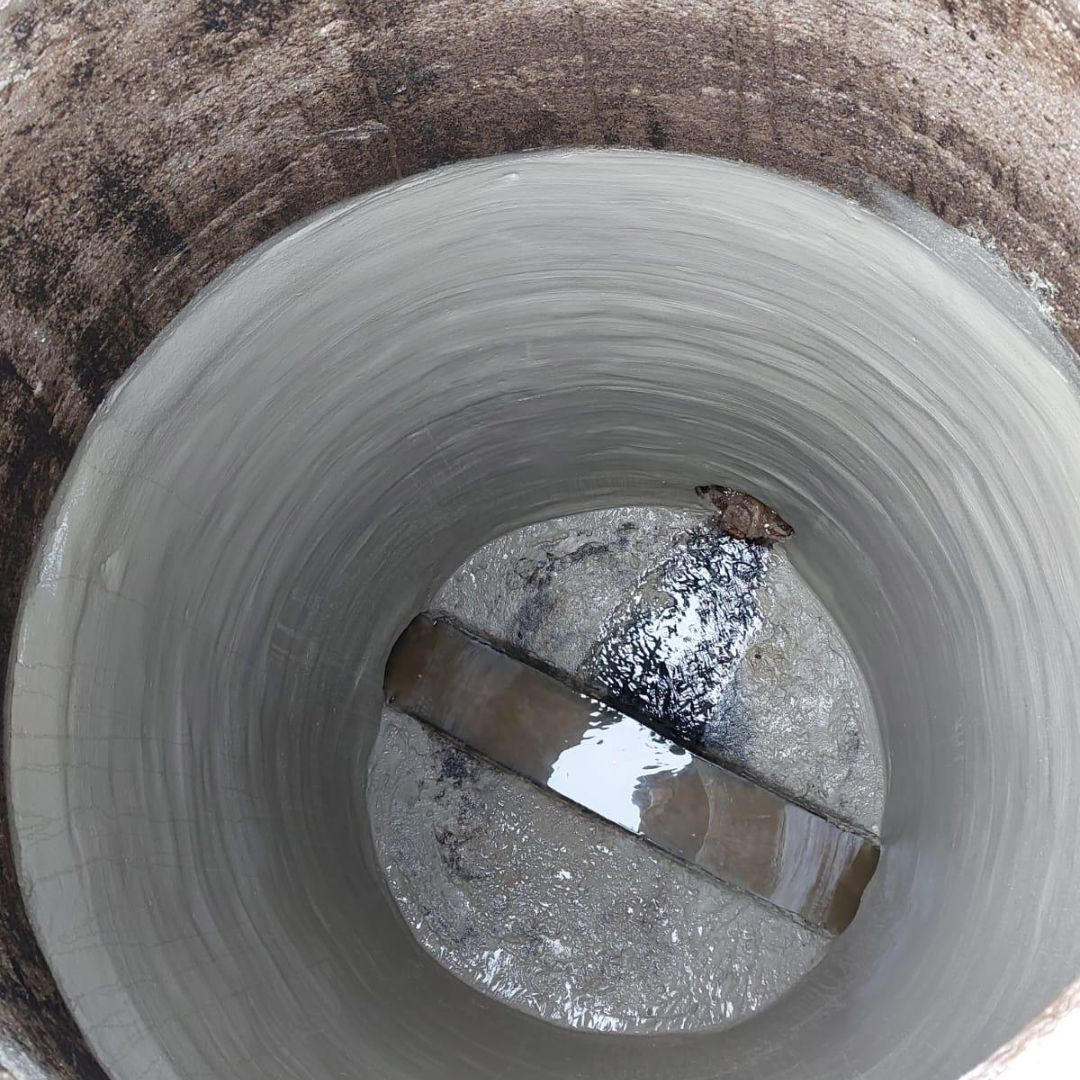

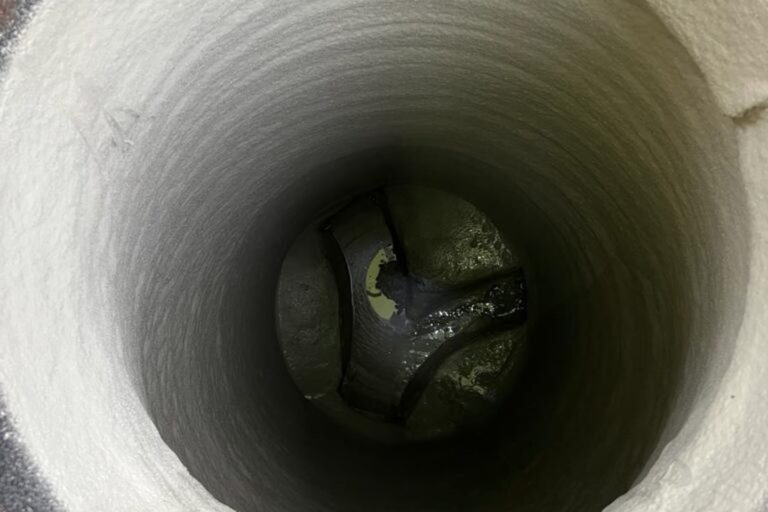

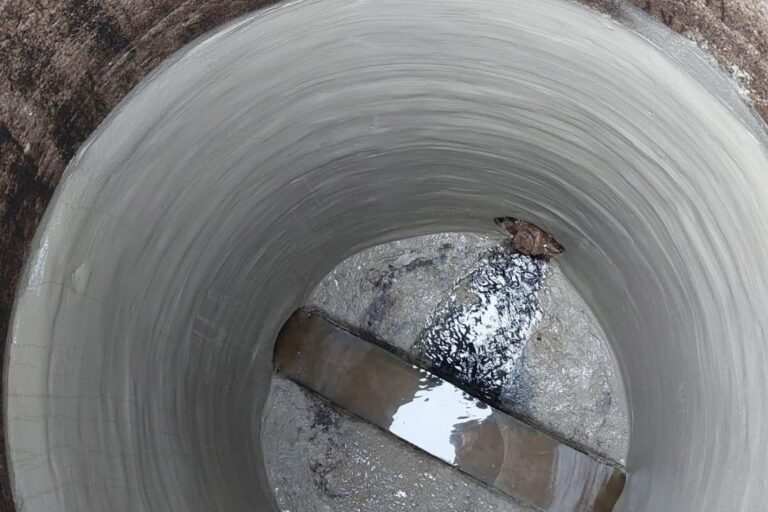

ERGELIT mortar lining

Engineered for Flexibility and Performance

Delivers consistent, high-quality coatings using ERGELIT mortar, while reducing the need for manual work inside hazardous shaft environments.

compact design

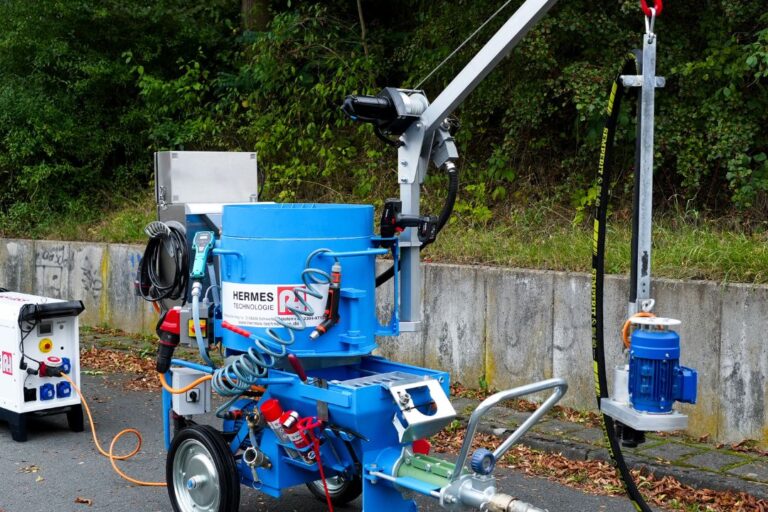

Compact Design and Mobile

Its compact design and mobile capability make it particularly suitable for projects where access is limited.

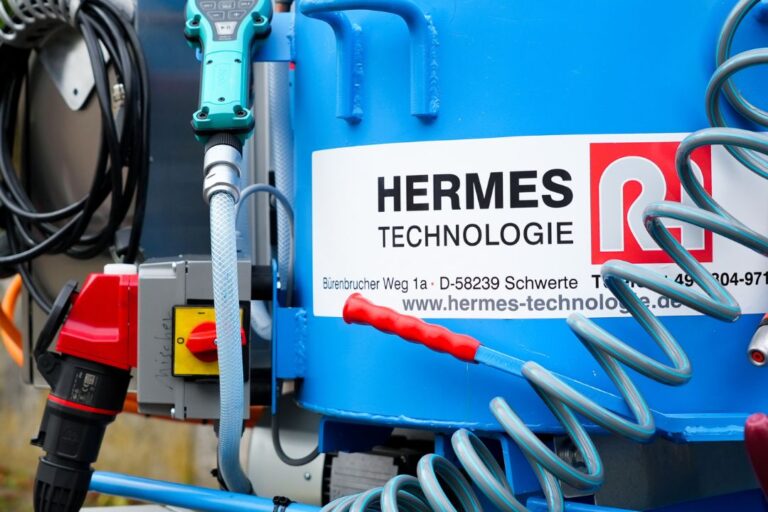

The M-Coating System from Hermes Technologie Ltd:

Overview

The M-Coating System is an efficient, entry-level solution for rehabilitating sewer shafts from DN500 to DN4500. Despite its compact size, it delivers advanced functionality typically found in larger automated systems.

Design

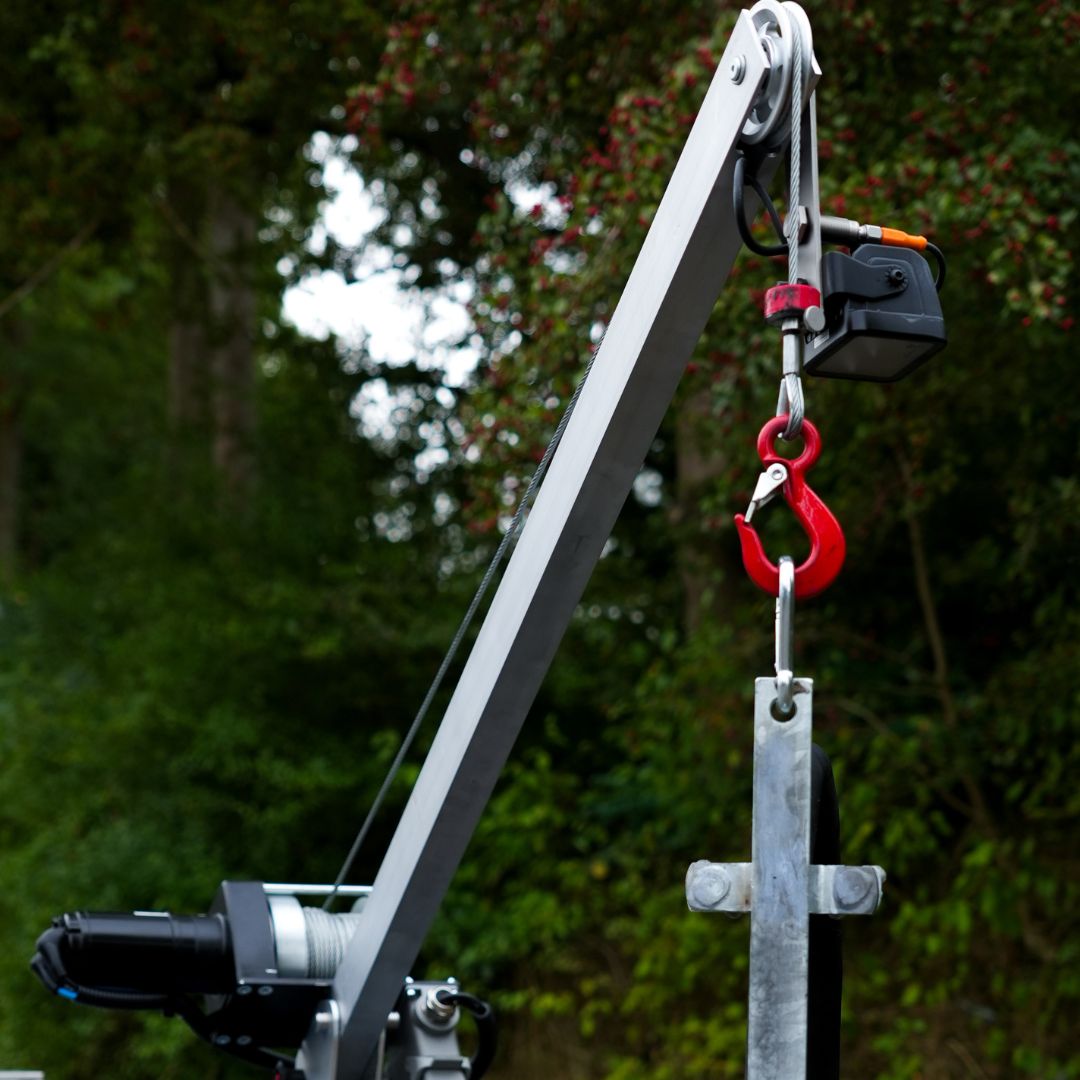

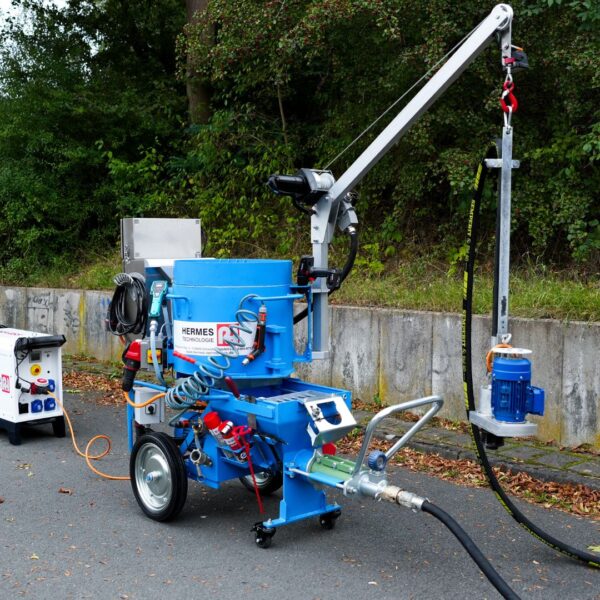

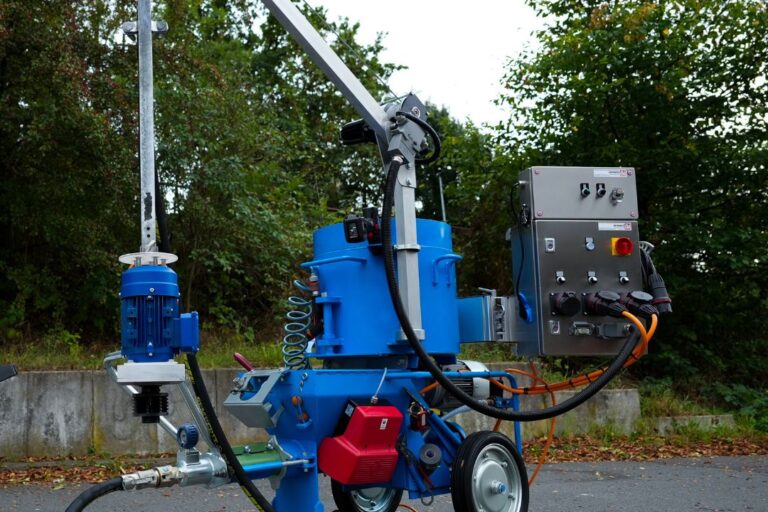

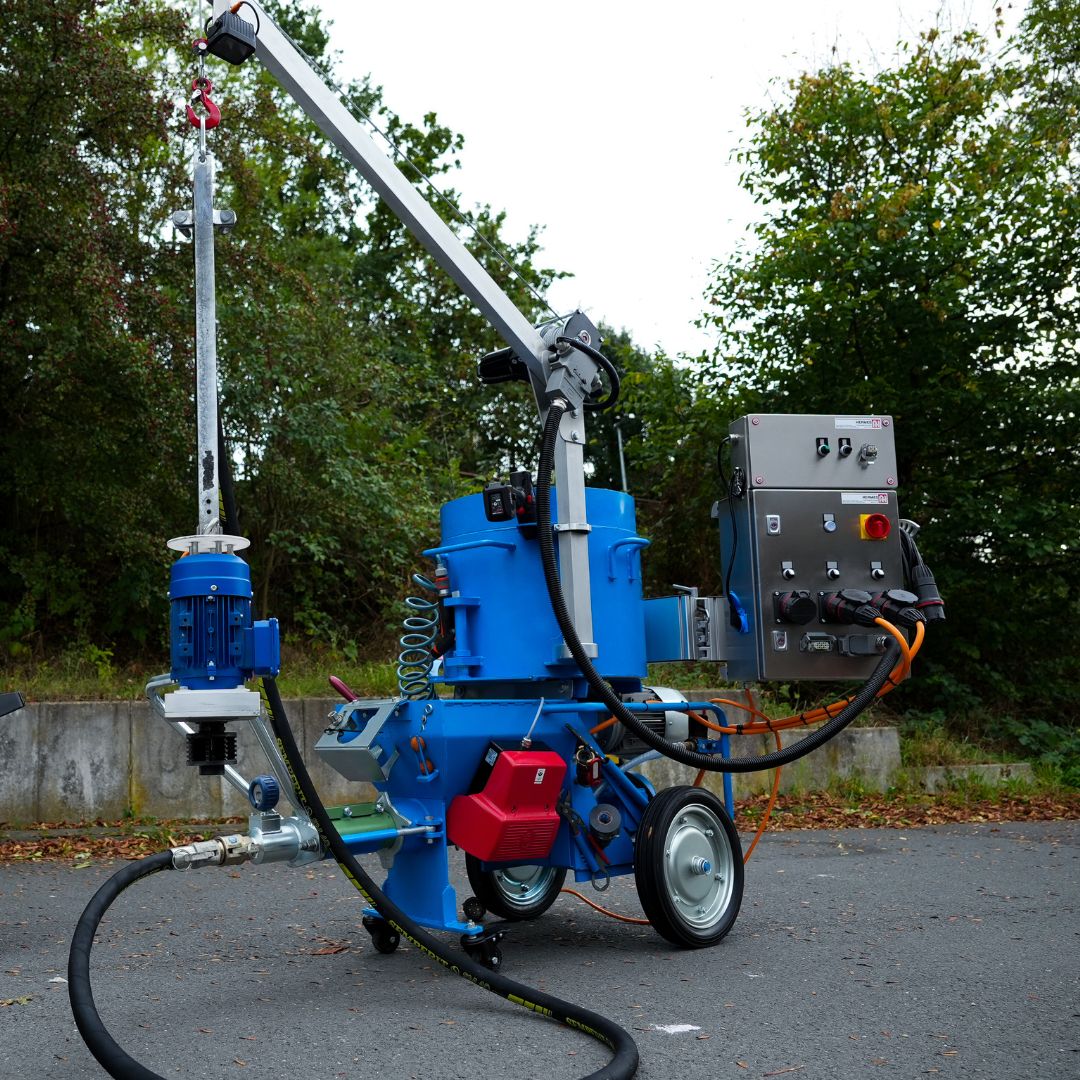

The system features integrated wheels and can be installed in service vehicles, trailers, or as a standalone unit. Its compact footprint allows easy transport on a standard pallet, simplifying logistics and deployment.

Application

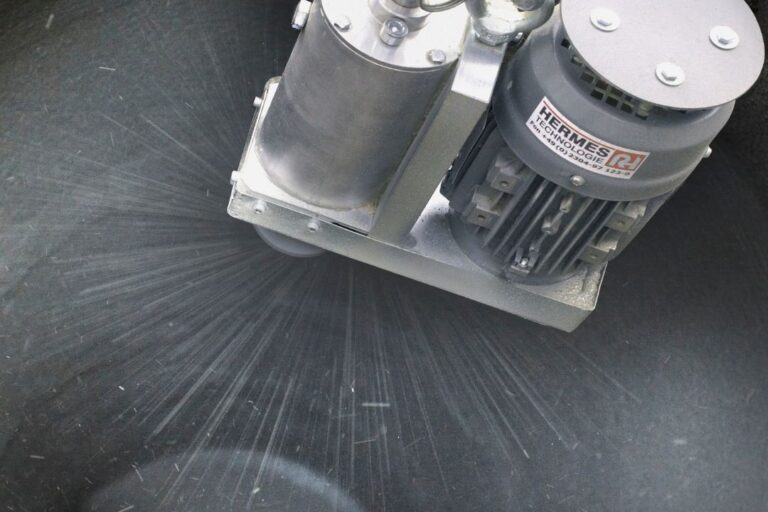

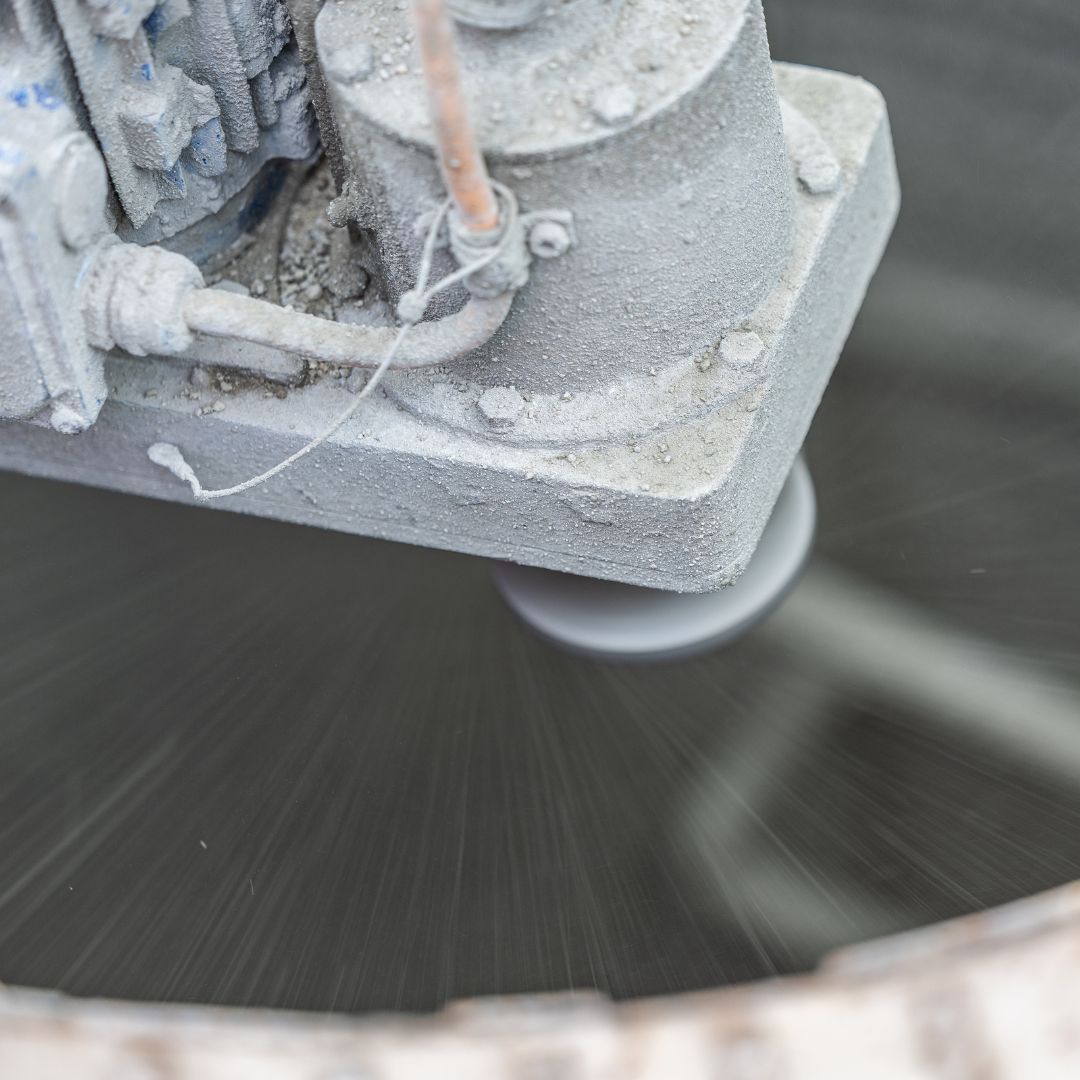

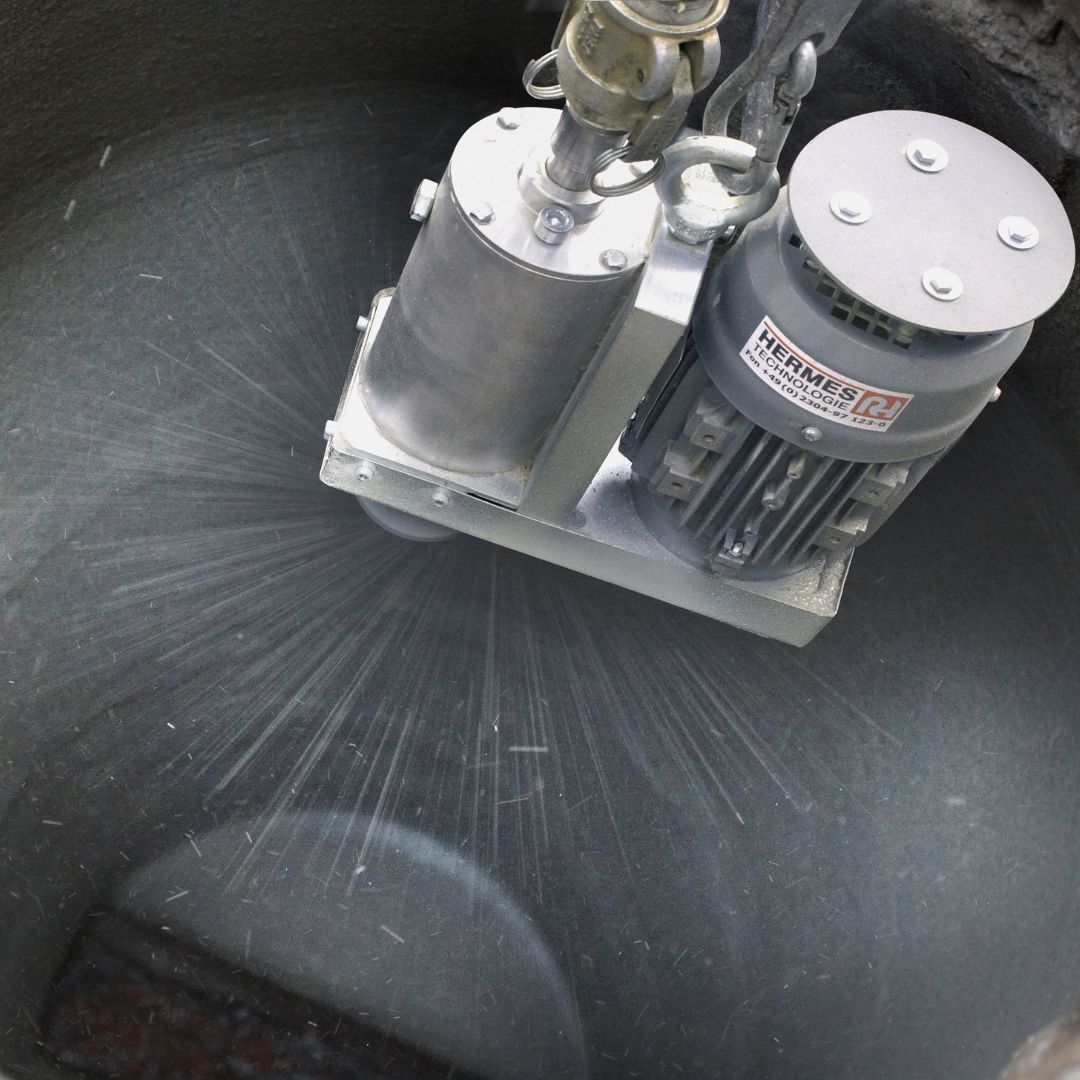

The system applies ERGELIT mortar using a centrifugal process, ensuring a controlled, uniform coating. Surface preparation is achieved with either its high-pressure water unit or the optional solid water jet nozzle for optimal adhesion.

Versatility

A highly adaptable solution for wastewater infrastructure projects – the system supports wet spraying of large surfaces, mortar injection, pressure grouting of masonry, and coating of horizontal sewer pipes.

Features and Benefits:

flexible

Compact Mobility and Flexible Deployment

Features:

  • Space-saving design for vehicles, trailers, or standalone use.
  • Integrated wheels for easy on-site movement.
  • Transportable on a standard pallet (1.20 m × 0.80 m).

Benefits:

  • Simple transport and fast setup.
  • Ideal for confined or urban job sites.
  • Maximises operational flexibility.

High-Performance Coating and Preparation

Features:

  • Even centrifugal application of ERGELIT mortar.
  • Suitable for DN500–DN4500 with virtually unlimited thickness.
  • High-pressure cleaning via TSSR® system.
  • Optional HDS Jet® solid water jet unit.

Benefits:

  • Consistent, high-quality coating results.
  • Up to 30% better performance than manual methods.
  • Optimal surface preparation ensures durability.

Safe and Efficient Operation

Features:

  • Coating performed from outside the shaft.

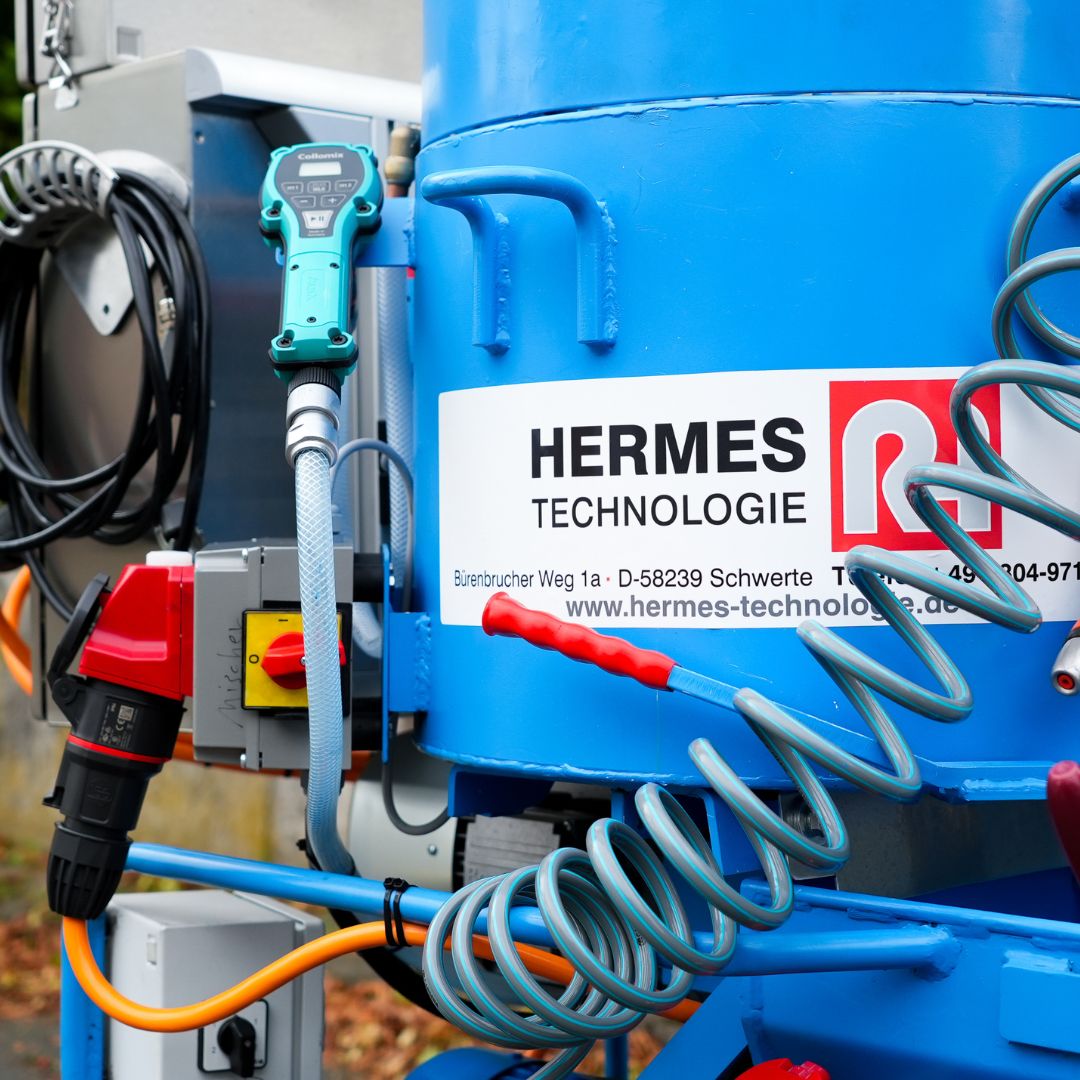

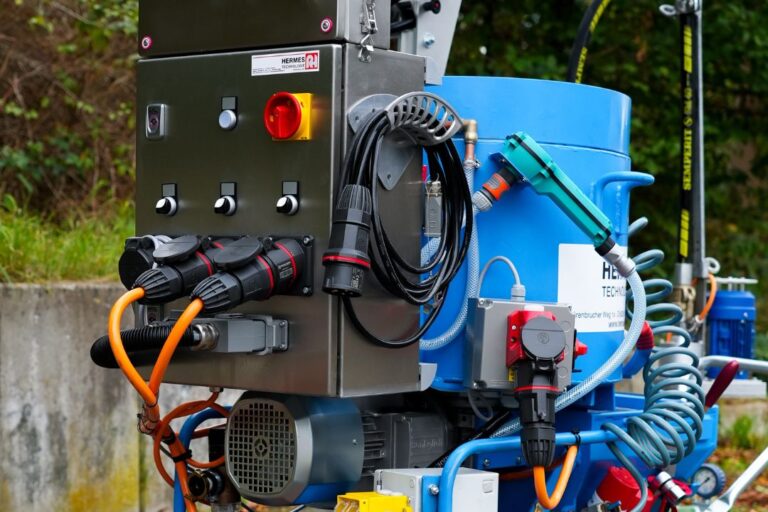

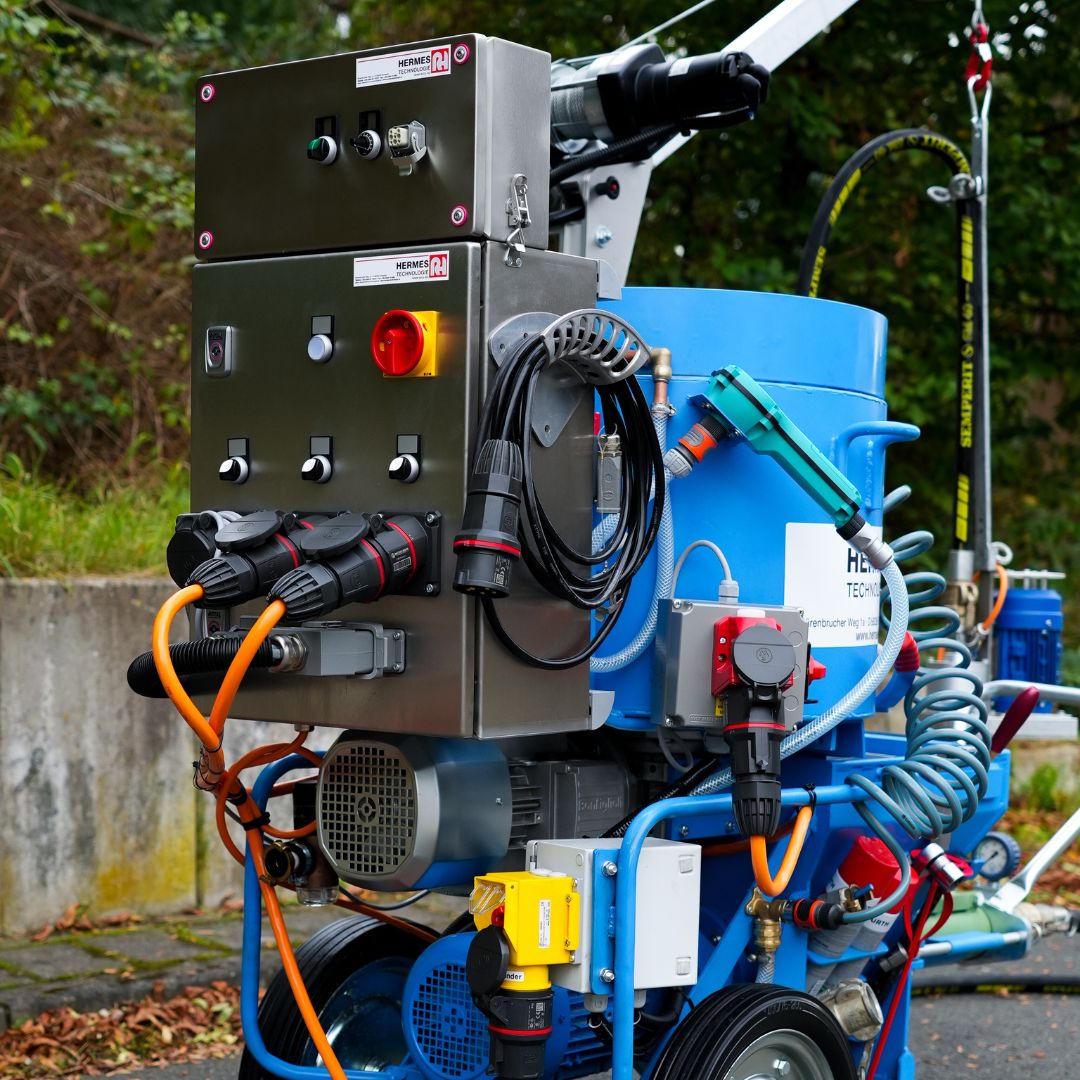

  • Semi-automatic process with continuous mixer and mortar pump.
  • Optional remote control operation.

Benefits:

  • Minimises confined space entry risks.
  • Reduces human error and operator fatigue.
  • Improves productivity and operational safety.

Versatility, Reliability and Scalability

Features:

  • Suitable for round and square manhole rehabilitation.
  • Supports wet spraying, mortar injection, pressure grouting, and horizontal pipe coating (DN800–DN4500).
  • DIBt-certified coating process.
  • Quick assembly; up to 10 shafts per day.
  • Upgradeable to a fully automatic system.

Benefits:

  • One system for multiple rehabilitation tasks.
  • Proven, certified performance you can trust.
  • Scalable solution that grows with project demands.
